Disc Screen

The disc screen is a sorting device for large-scale screening. The structure of the disc screen is usually composed of a roller, screen and motor, which is simple to operate, easy to maintain, high efficiency and low energy consumption. The disc screen plays an important role in modern waste disposal because of its efficiency, environmental protection and easy operation.

Description
Advantages
Application Areas
Technical data
Cases
Related Products

Home > Products > Disc Screen

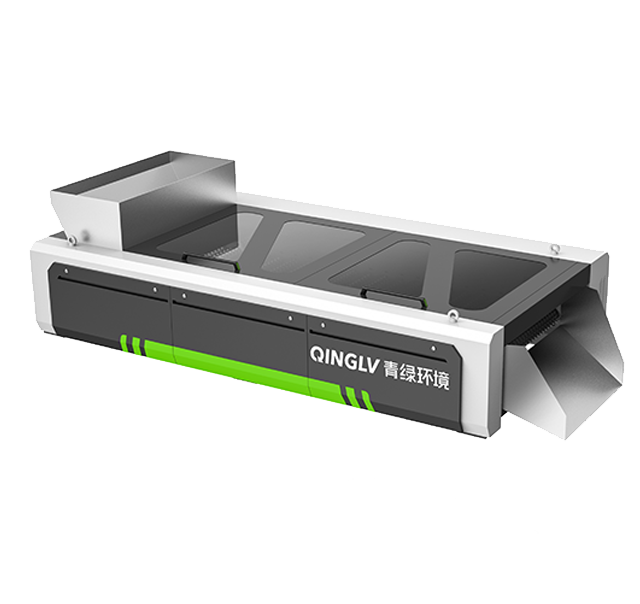

Disc Screen

The disc screen is a high-performance device suitable for large-scale screening. It is ideal for automatically separating organic materials from municipal solid waste, landfill waste, or industrial solid waste, as well as for separating large size materials from construction&demolition waste or recyclable waste.

Qinglv's unique disc screen design allows for more accurate determination of raw material sizes and the formation of more precise dynamic screen holes. This effectively avoids the blind spot issues common with traditional disc screens and makes the equipment less prone to clogging, resulting in easier maintenance.

Advantages

( 01 )
High screening efficiency
Equipped with a high-efficiency, energy-saving motor and a specially designed moderator, offering both high stability and high screening efficiency.
( 02 )
High precision
Special disc design with higher precision in dynamic screen holes.
( 03 )
Strong product stability
Capable of maintaining long-term stable operation under heavy loads, with a sorting capacity of up to 80m³/h.
( 04 )
Low maintenance costs
Less prone to clogging, resulting in lower maintenance costs.
( 05)
Minimum space requirement
Special structural design for minimum space requirements and lower costs

Application Areas

Construction and Demolition waste

Recyclable waste

Municipal solid waste

Landfill waste

Industrial solid waste

Paper mill waste

Technical data

Length*Width(mm)
4000*1600mm
Power(kw)
4*4KW
Screen thickness(mm)
16mm
Gap(mm)
φ30-50mm
Sub-screen size(mm)
30-50mm
Screening capacity(m³/h)
≥35m³/h
Voltage required(V)
380V
