3D Sorter

3D sorter is a kind of equipment used for waste treatment and sorting, its main function is to sort materials according to the shape, size and specific gravity. QINGLV 3D Sorter performs well in the field of waste treatment, which can quickly and accurately identify and sort various materials in waste, improving the sorting efficiency.

Broad applicability

High specificity

Excellent stability

Energy efficient

Description
Advantages
Application Areas
Technical data
Cases
Related Products

Home > Products > 3D Sorter

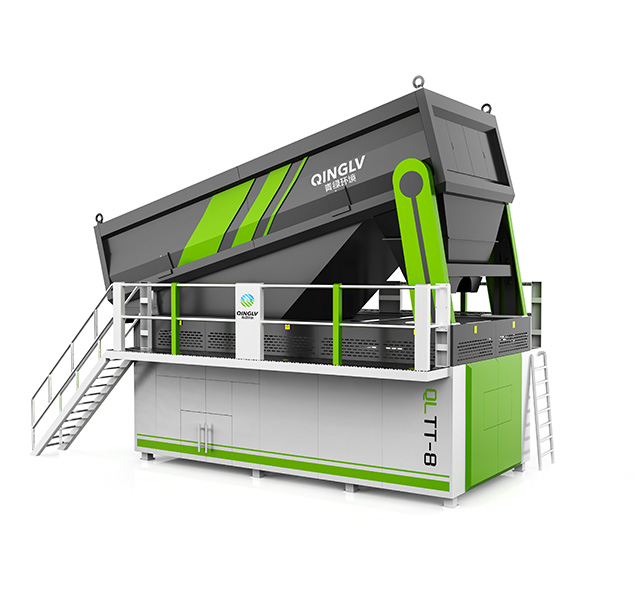

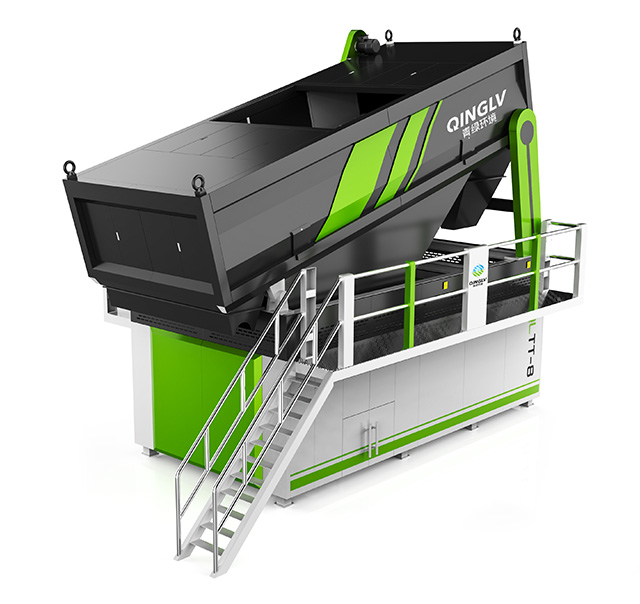

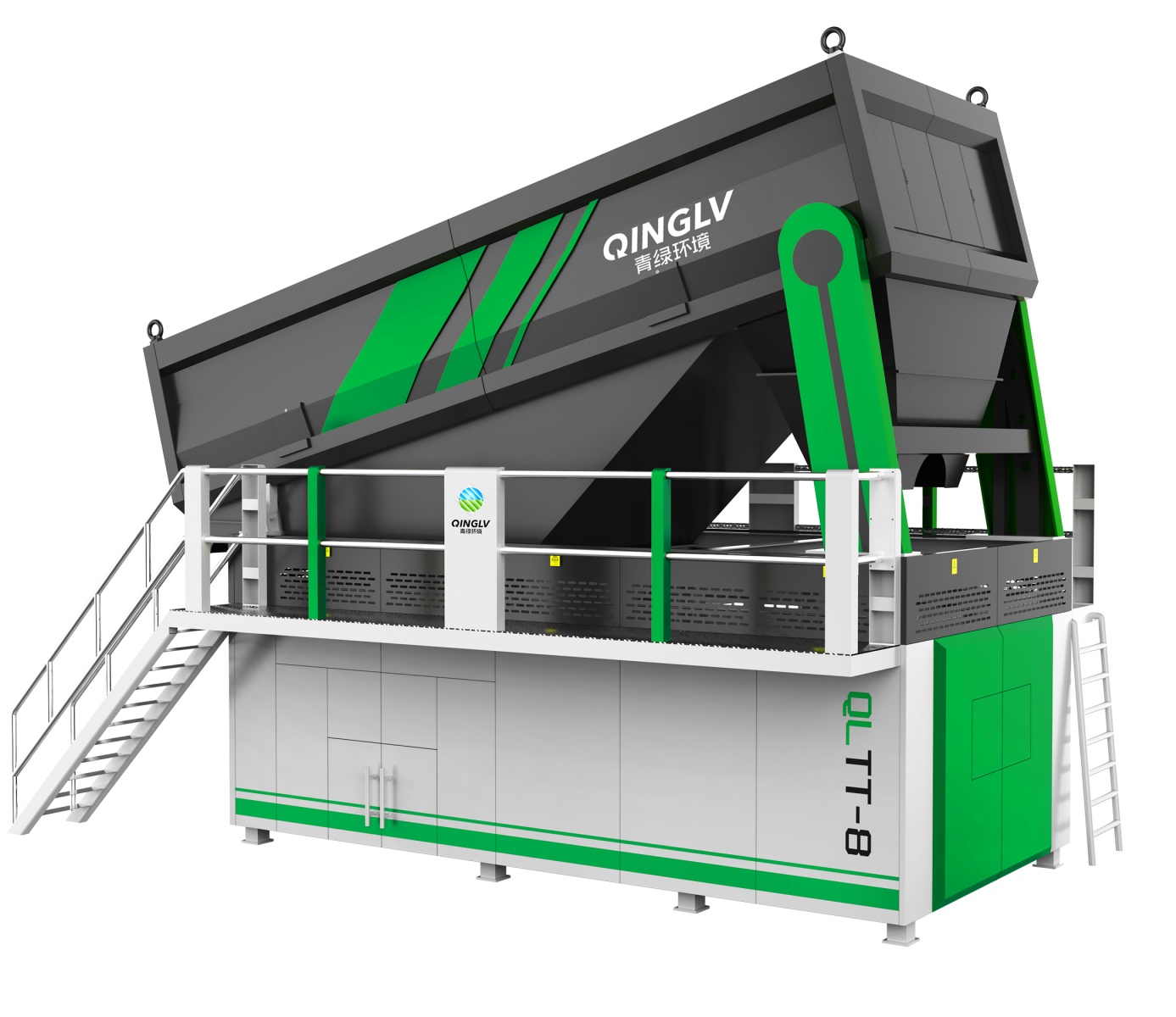

3D Sorter

QINGLV's 3D sorter machine is a core component in various solid waste sorting systems, capable of sorting materials based on their shape, size, and weight.

QINGLV's innovative 3D sorter quickly classifies incoming waste into three main categories: lightweight flat 2D waste, 3D waste with certain weight and volume, and undersized waste.

The 2D waste primarily include plastic films, clothing textiles, and various flexible substances.

The 3D waste mainly comprise hard materials such as stones, wood, glass, and precious metals. The undersized waste include fine soil and gravel. The particle size of the sorted waste can be customized through the mesh aperture size.

QINGLV's 3D sorter machine boasts high integration and sorting efficiency, making it suitable for a variety of complex and harsh waste sorting scenarios.It has been successfully implemented in hundreds of cases nationwide.

Advantages

( 01 )
Broad applicability
The screen angle and mesh aperture size can be customized and adjusted to fully adapt to different waste compositions.
( 02 )
Excellent stability
The exclusive crankshaft design is suitable for heavy waste materials, such as construction waste, landfill waste and msw，enabling continuous operation for，12 months without bearing replacement.
( 03 )
Energy efficient
Daily Throughput can reach up to thousands of tonswith the equipment motor power requirement being only 11KW.

Application Areas

Construction and Demolition waste

Recyclable waste

Municipal solid waste

Landfill waste

Industrial solid waste

Paper mill waste

Technical data

QLTT-4
QLTT-6
QLTT-8

Drive power（Kw）
7.5KW+5.5kw / customized
Screen length(mm)
4300 / customized
Working width(mm)
2500 / customized
Screen area(㎡)
4 / customized
Length*Width*Height(mm)
6500*2500*3500 / customized
Mesh dimension(mm)
depend on screened materials
Maxium throughput(m³/h)
5~15 / customized
Drive unit
motor+gearbox / customized
Machine cover
plastic /steel / stainless steel
Drive power（Kw）
11KW+5.5kw / customized
Screen length(mm)
5300 / customized
Working width(mm)
3000 / customized
Screen area(㎡)
6 / customized
Length*Width*Height(mm)
7000*3500*4500 / customized
Mesh dimension(mm)
depend on screened materials
Maxium throughput(m³/h)
20~30 / customized
Drive unit
motor+gearbox / customized
Machine cover
plastic/steel/stainless steel
Drive power（Kw）
11KW+5.5kw/ customized
Screen length(mm)
6300 / customized
Working width(mm)
3500 / customized
Screen area(㎡)
8 / customized
Length*Width*Height(mm)
7500*4200*5000 / customized
Mesh dimension(mm)
depend on screened materials
Maxium throughput(m³/h)
20~30 / customized
Drive unit
motor+gearbox / customized
Machine cover
plastic/steel/stainless steel
